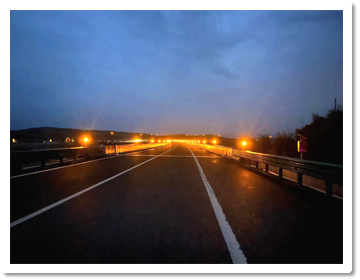

Since the beginning of winter, there has been a high incidence of fog, rain, and snow, and expressway traffic accidents have occurred frequently, seriously threatening the safety of the public's travel. Chuangdi Technology's intelligent driving safety guidance system for adverse weather conditions is specifically designed to provide safety guidance for vehicles traveling on expressways.

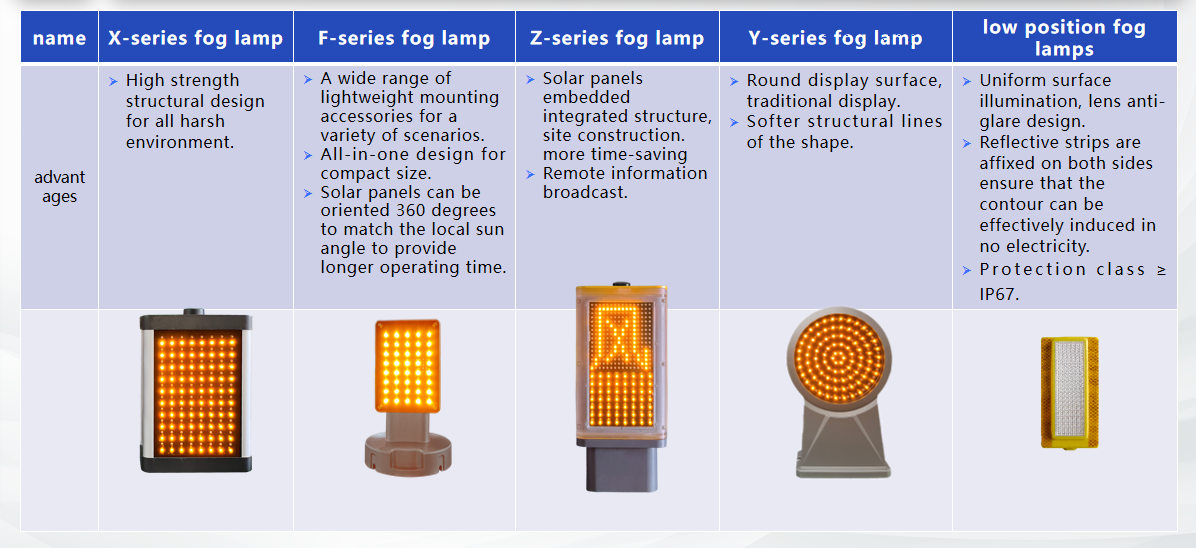

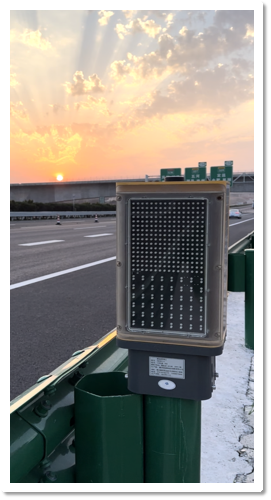

the fog lamp
The Adverse Weather Safety Induction System
| Working modes | Visibility |
Blinking effect |
| Standby mode | ＞1000m | Induction device turned off, low-power standby mode |
| Road contour enhancement mode | 600m~1000m | The yellow induction light is always on, and the red induction light is off |
| Driving inducing mode | 300m~600m | Yellow induction light flashes, red induction light turns off |
| Rear end collision warning mode | 50m~300m | When no vehicles pass by, the yellow induction light remains on. When a vehicle passes by, the yellow induction light at the rear of the vehicle at a certain distance will switch to red (or flashing red and yellow dual colors) |

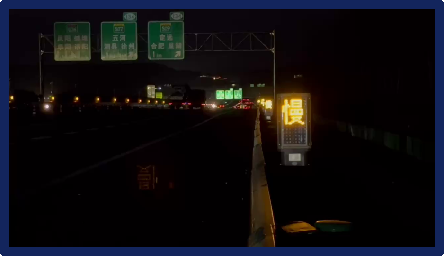

| Warning slogan display mode | Special condition such as accidents ahead | Display warning signs: slippery roads, ice, snow, rain, fog ..... |

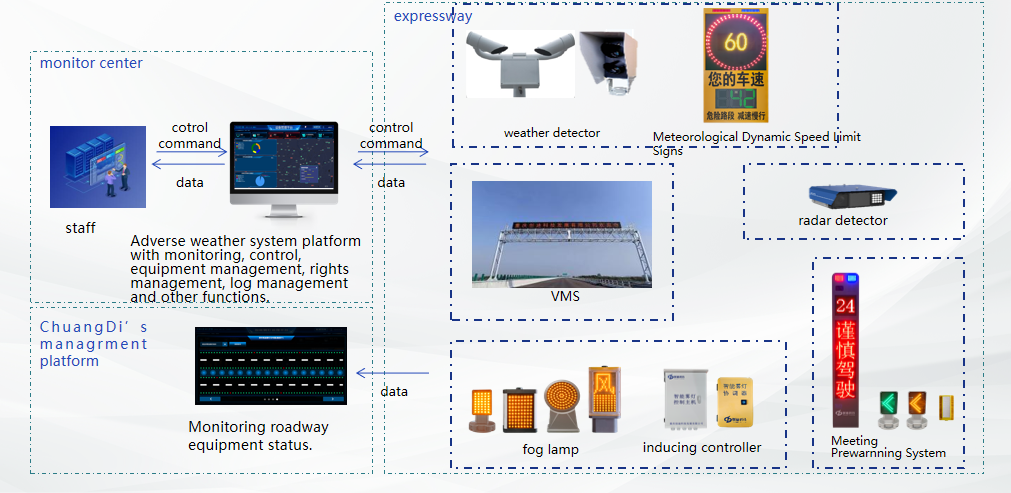

All devices of the Adverse Weather Safety Induction System and the device management cloud platform communicate through 4G. The induction device, coordinator, and controller use 2.4G communication. A set of coordinators is deployed every 1000 meters in each direction, and N sets of controllers (usually one set) are arranged for each project according to the convenience of local control. The different functional subsystems such as meteorological/visibility detectors, passing warning systems, meteorological dynamic speed limit signs, low induction lights, and inducing device controllers are transmitted to the monitoring and management platform through wired/4G signals.
controller and coordinator
1. Shanxi Province,China;Jingle to Xingxian expressway.
fog lamp 2440 sets
local controller 20 sets
2. Anhui Province,China G4211 NingWu expressway.
fog lamp 1200 sets
local controller 1 set
coordinator 71 sets
