Remote power supply

Product function:

 The DC remote power supply system consists of a local terminal, a remote terminal, and transmission cables; It is a centralized power supply and distributed power system that achieves local AC380V input and DC750V output; Remote DC550~750V input, AC220V output; It has the advantages of soft start, remote monitoring and management, and comprehensive input and output protection.

                                                        local terminal

                                                         remote terminal

      The local terminal is installed nearby in the machine room or distribution room (preferably at a constant temperature), with a five wire input of AC380V to the equipment and a two-wire output of DC750V. The local terminal provides interfaces and related software with the power monitoring system. A local terminal can connect to multiple remote terminal machines. Two core power cables are responsible for efficiently transmitting power to load terminals. The local terminal products have instantaneous value control and online adjustable functions, with high control accuracy, strong load adaptability, low noise, and strong anti-interference ability, suitable for supplying power to expressway. The system adopts a modular design and can provide N+1 redundant backup of power modules as needed. The device has overcurrent and overvoltage protection functions. Input undervoltage protection, input overvoltage protection, output overvoltage protection, output undervoltage protection. It has open circuit and short circuit protection functions to prevent fire and personal injury. It has safety measures such as power overlap protection, leakage protection, over temperature protection, and suspended ground protection. Provide device self diagnostic function to facilitate equipment maintenance. Optional embedded management unit to monitor the working status and parameters of the device itself.

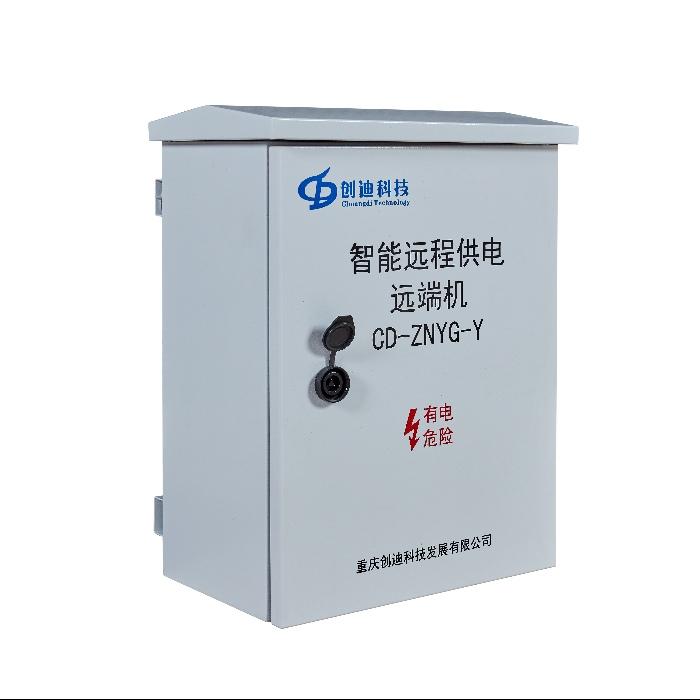

      The remote terminal device is installed on the side of the electrical equipment and is responsible for converting the DC750V transmitted from the local terminal to the AC220V required by the electrical equipment. A remote terminal can connect multiple load terminals. The remote device provides Ethernet and/or serial interfaces for seamless integration into expressway communication systems. The input voltage of the converter can be adjusted according to the load situation, which not only isolates the power supply loop from the mains power supply network, but also achieves precise voltage stabilization of the output voltage. The equipment has extremely high reliability. The product adopts modular design, and the impact of faulty components on other devices in the system is minimal, making it difficult to spread and easy to maintain. It has various special functions such as high output accuracy, short response time, automatic protection against load short circuit, isolation, filtering, and bidirectional anti-interference.

Product parameters:

DC remote power supply local terminal:

1.Rated DC output power: 0-60KVA
2. Module power: 10KVA or 20KVA
3. AC input voltage: AC380V/AC220V ± 15%
4. DC output voltage range: 550VDC~750VDC
5. Adjustable range of DC current limit: 10% to 110% infinitely variable control
6. DC peak to peak noise: ≤± 0.5%
7. DC voltage stabilization accuracy: ≤± 0.5%
8. DC current stabilization accuracy: ≤± 1%
9. DC current sharing: ≤± 5%
10. DC efficiency: 100% load ≥ 95%; 50% load ≥ 95.5%
11. Input/output protection: insurance; Lightning protection circuit; It has functions such as ground suspension (output to ground voltage below 36V), undervoltage protection, input overvoltage protection, output overvoltage protection, output undervoltage alarm, short circuit protection, open circuit protection, power overlap protection, leakage protection, and over temperature protection; Protection action time ≤ 20ms;
12. Monitoring unit: LCD touch screen display, RS485, TCP/IP communication
13. Working environment temperature: -40 ℃ to 75 ℃- Normal operation at 40 ℃ to 50 ℃; 50 ℃ to 75 ℃ derating output;
14. Storage temperature: -40 ℃ to 85 ℃;
15. Relative humidity: 0-95%;
16. Full load output at an altitude of 2000m, derating output above 2000m;
17. MTBF:>120000 hours;
18. Supports hot swapping.

DC remote power supply remote terminal:

1.Rated output power: 0-10KVA optional
2. Module power: 0.5KVA, 1KVA, 3KVA, 5KVA
3. Input voltage range: 550VDC~750VDC
4. Output overload capacity: 100% to 110% for 10 minutes; 110%～125% 1min； More than 125%, 60ms; Overdue shutdown due to overload.
5. Work efficiency: ≥ 92% (full load linear load)
6. Rated output voltage: 220VAC/24VAC or DC 36VDC/24VDC/12VDC (customized)
7. Input/output protection: insurance; Lightning protection circuit; It has functions such as ground suspension, undervoltage protection, input overvoltage protection, output overvoltage protection, output undervoltage alarm, short circuit protection, open circuit protection, power overlap protection, leakage protection, and over temperature protection;
8. Working environment temperature: -40 ℃ to 60 ℃;
9. Storage temperature: -45 ℃~85 ℃
10. Relative humidity: 0-95%
11. Full load output at an altitude of 2000m, derating output above 2000m
12. Protection level: IP65
13. Support hot swapping.

Project Case:

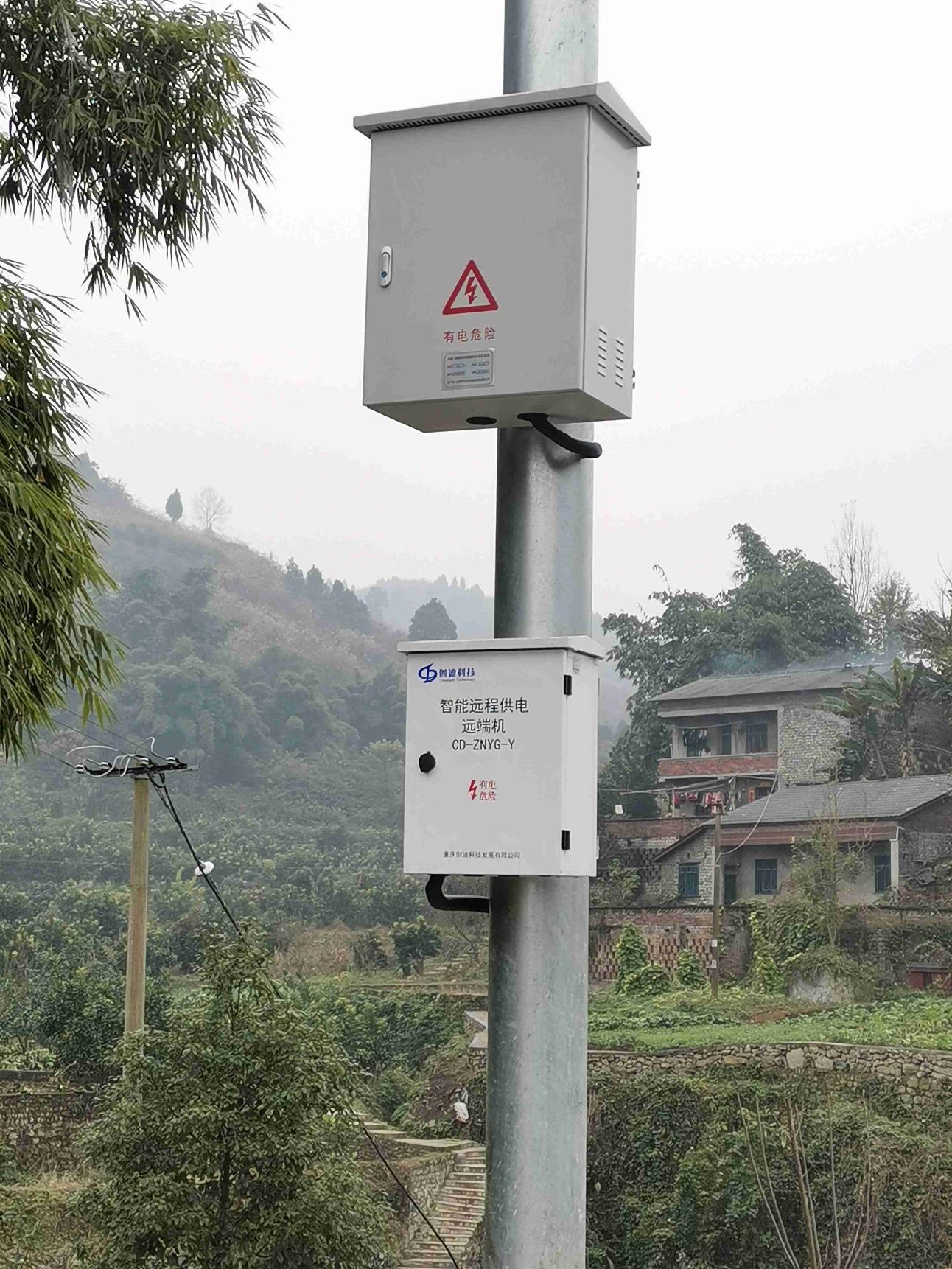

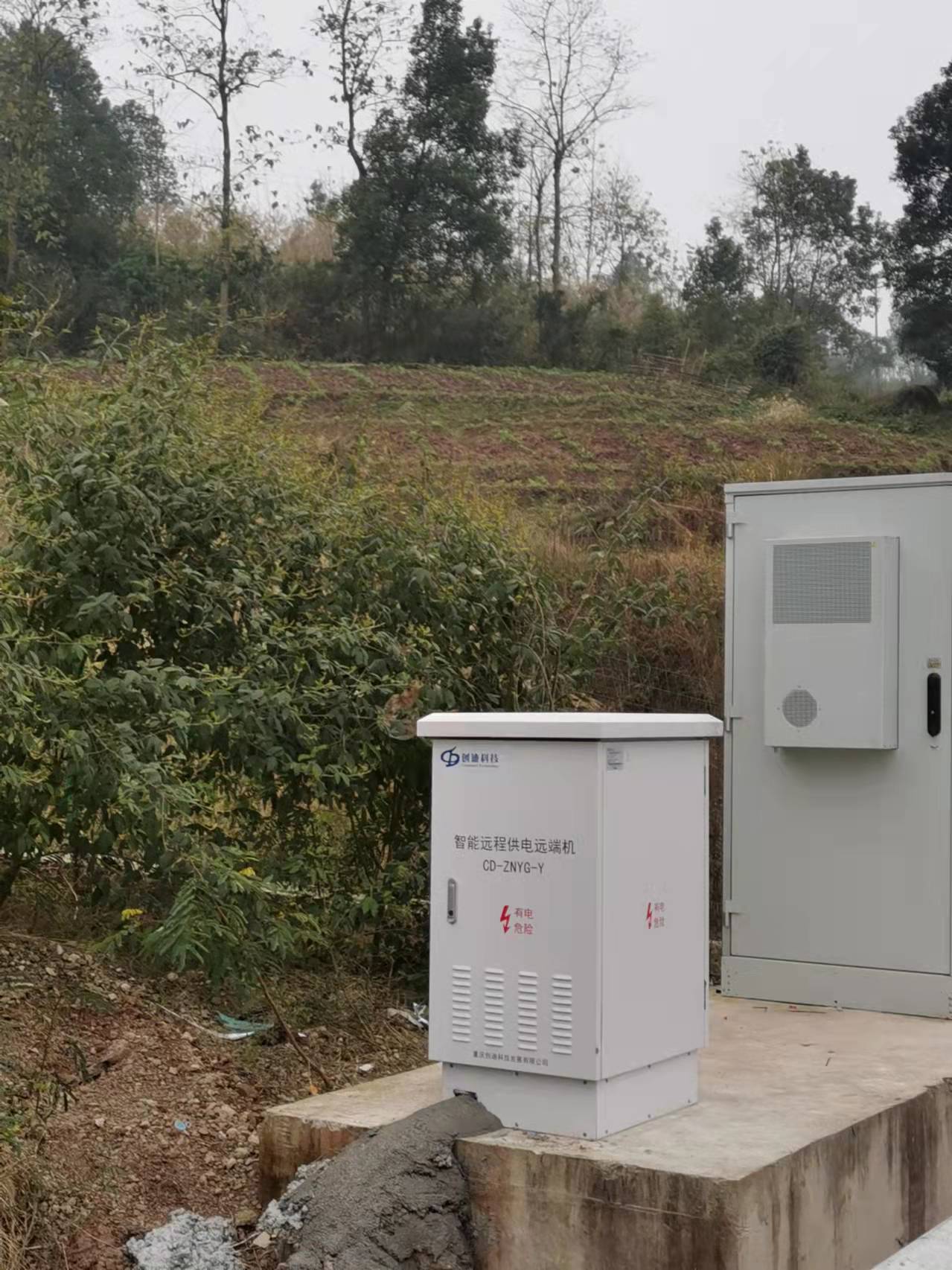

The YU-Qian expressway: the local terminal and remote terminal.
