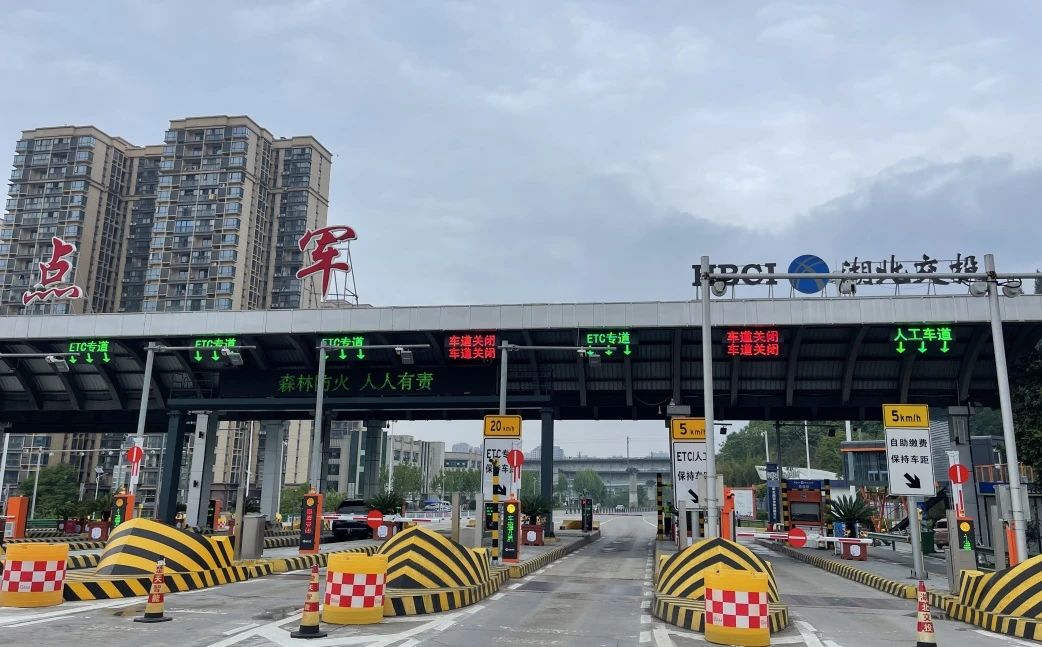

The foldable VMS generally installed above the ETC lane, it adopts a dual screen design with upper and lower screens, which can display various information through software. Tilt the lower screen at a certain angle to facilitate timely monitoring of toll collection by drivers and passengers within different line of sight ranges, guiding vehicles to pass efficiently and in an orderly manner.
Generally installed above the ETC lane, it adopts a dual screen design with upper and lower screens, which can display various information through software. Tilt the lower screen at a certain angle to facilitate timely monitoring of toll collection by drivers and passengers within different line of sight ranges, guiding vehicles to pass efficiently and in an orderly manner.

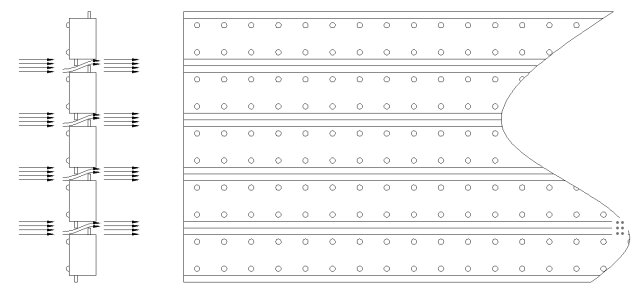

The foldable VMS adopts a unique ventilation structure design, which is breathable and opaque, improving wind resistance and reducing screen weight.

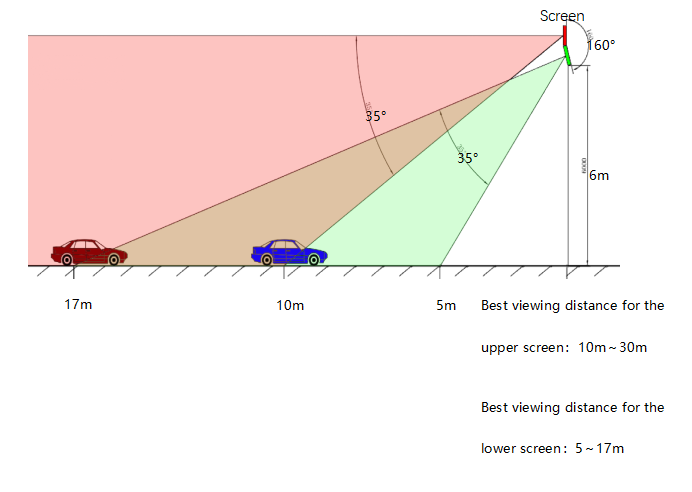

side view and front view
① Lightweight, small in size, strong in heat dissipation, easy to install, and excellent in ventilation;
② The lower main screen can be adjusted from 0 to 30 degrees, and can be adjusted according to the desired angle;
③ Can provide transaction status information for both trading vehicles and pending vehicles in a timely manner, guiding vehicles to pass efficiently;
④ The equipment has online monitoring and maintenance, historical data viewing and analysis;
⑤ Easy to debug, convenient to operate, supports both local and remote control modes;
⑥ The device has uniform brightness, intuitive display, stable performance, and is energy-saving and environmentally friendly.
① Screen size: 2240mm wide x 1000mm high;(customized)
② Module size: 1120mm x 100mm
③ Point spacing: 10mm;(customized)
④ Pixel composition: full-color, 1R1G1B;
⑤ Each set of screens consists of an upper screen and a lower screen. The upper vertical screen is perpendicular to the horizontal plane, and the lower screen can be folded backwards at an adjustable angle of 0-30 °;
⑥ Drive mode: static constant current, with overcurrent protection function;
⑦ Display brightness: ≥ 8000cd/m ²;
⑧ Display screen brightness: 64 levels of brightness adjustable;
⑨ Full screen viewing angle: ≥ 30 °;
⑩ Screen weight: ≤ 20KG/m ²;
⑪ Working voltage: AC220V ± 10%;
⑫ Working environment temperature: -20 ℃~55 ℃;
⑬ Working environment humidity: 10%~85% RH;
⑭ Protection level: IP65;
⑮ Communication method: TCP/IP network port communication interface.(customized)
