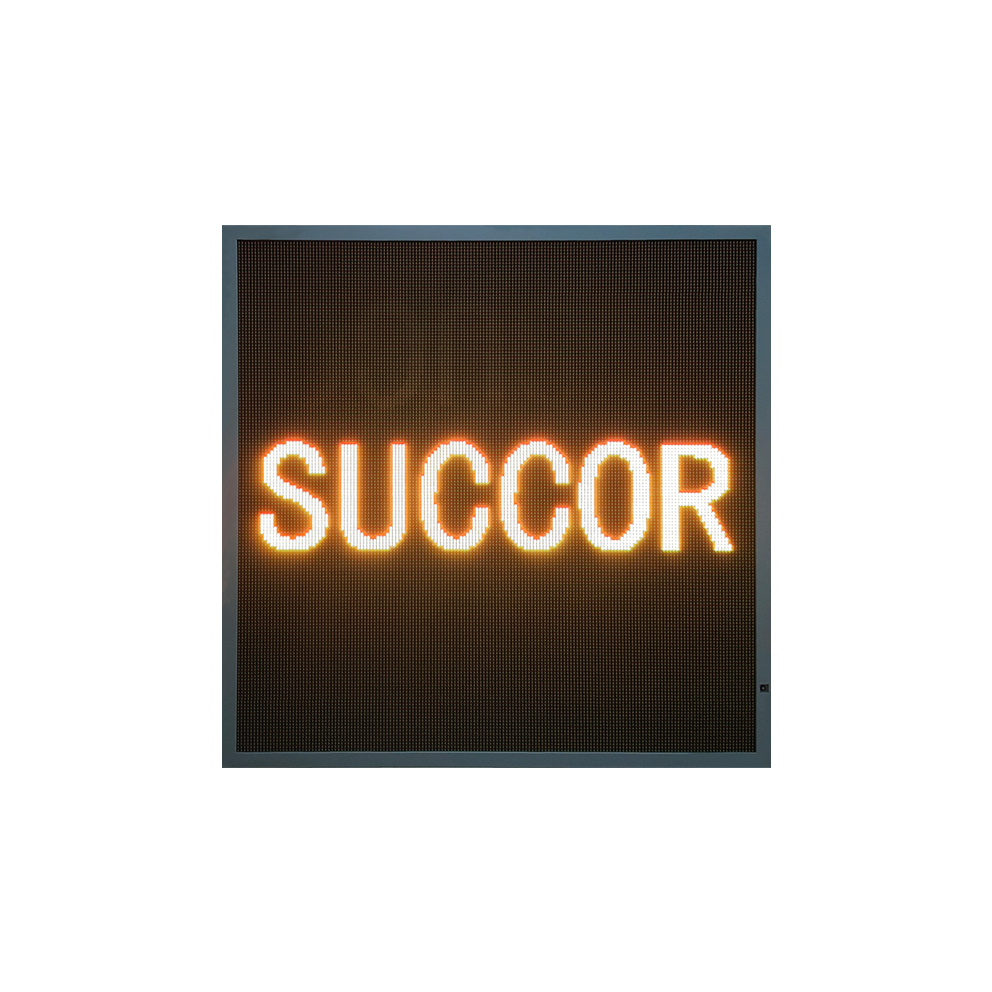

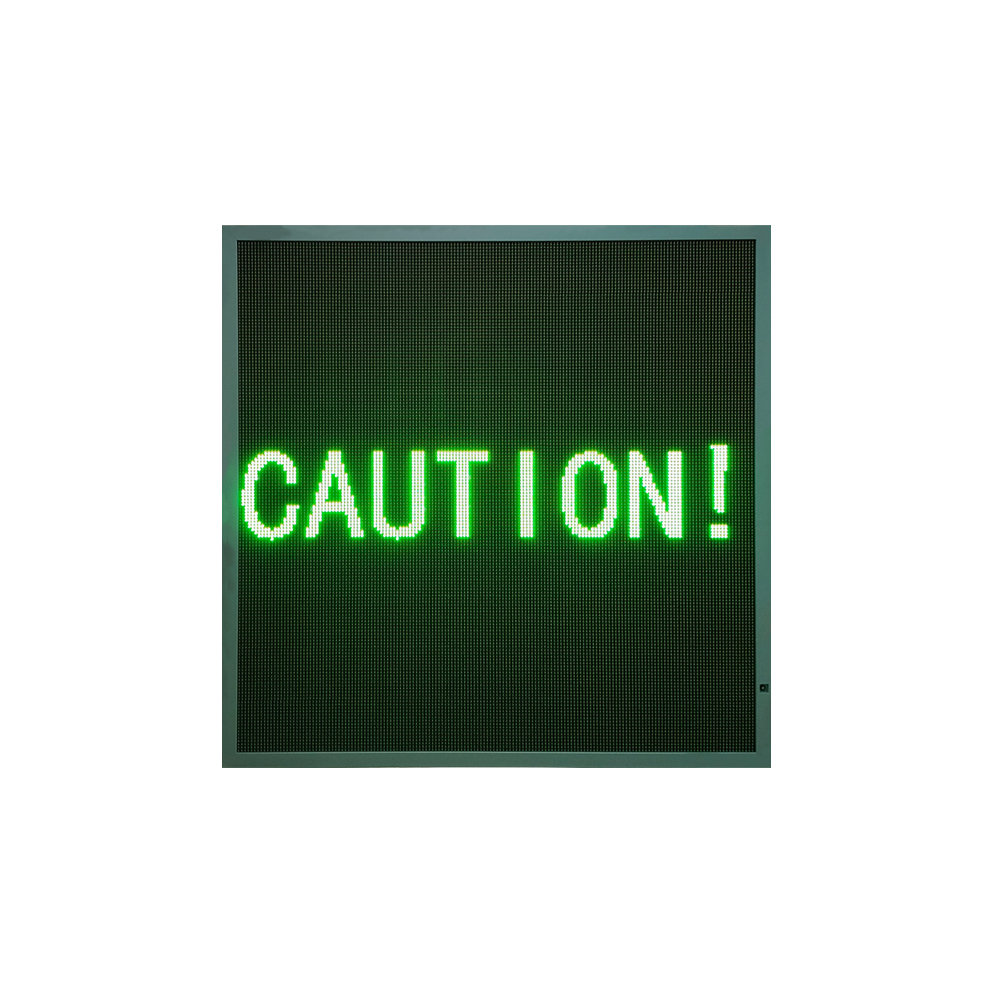

Chuangdi's VMS is a large-scale display device for expressway sections.It is uniformly controlled by the section monitoring center and can display text, graphics, speed limit numbers, etc. It is used to issue road condition guidance, publicity, and warning information to drivers. Meets GB/T23828-2023 "LED Variable Message Signs for expressways", with CMA and CNAS testing reports, China Quality Certification Center CCC compulsory certification certificate.

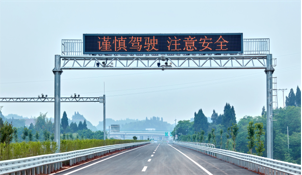

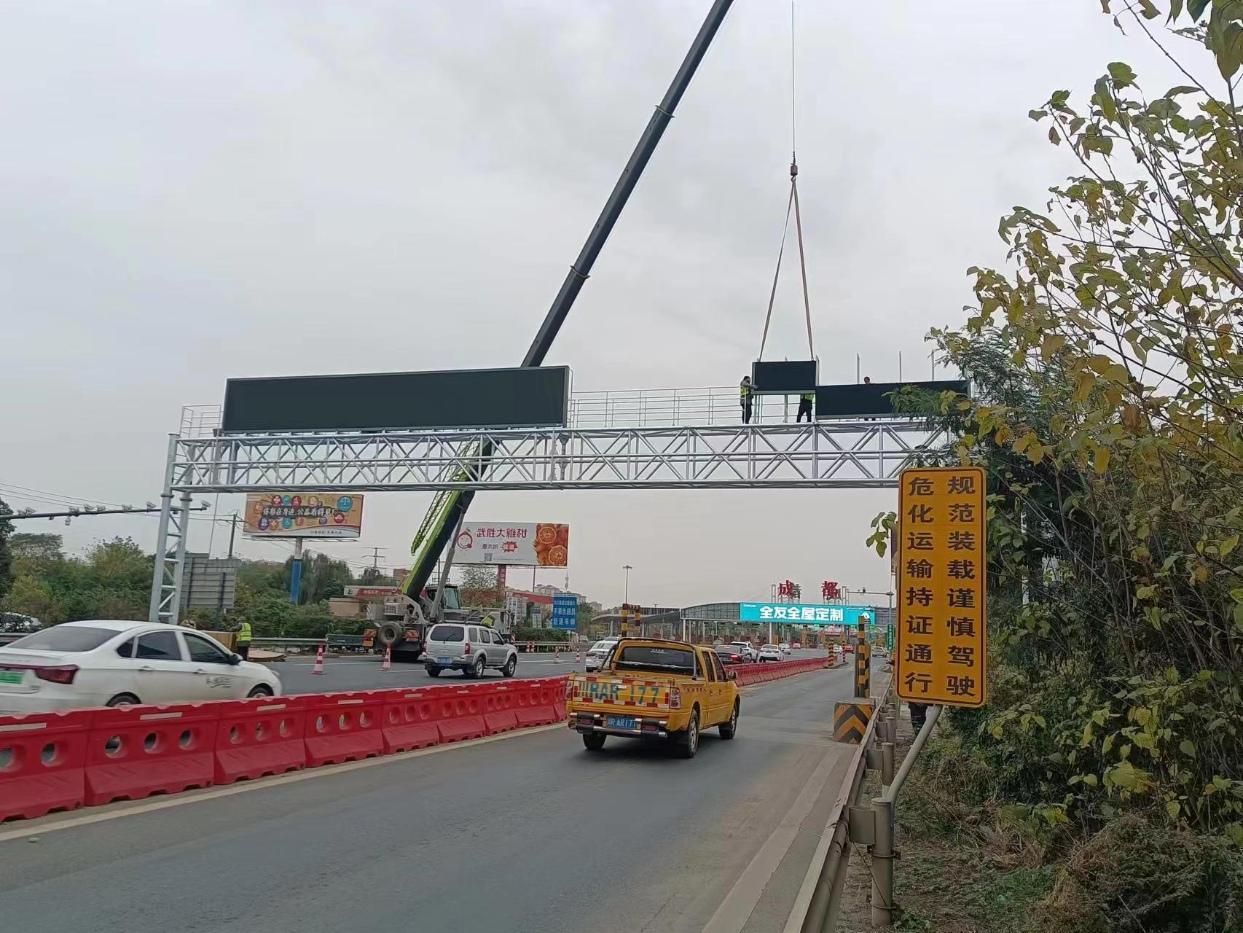

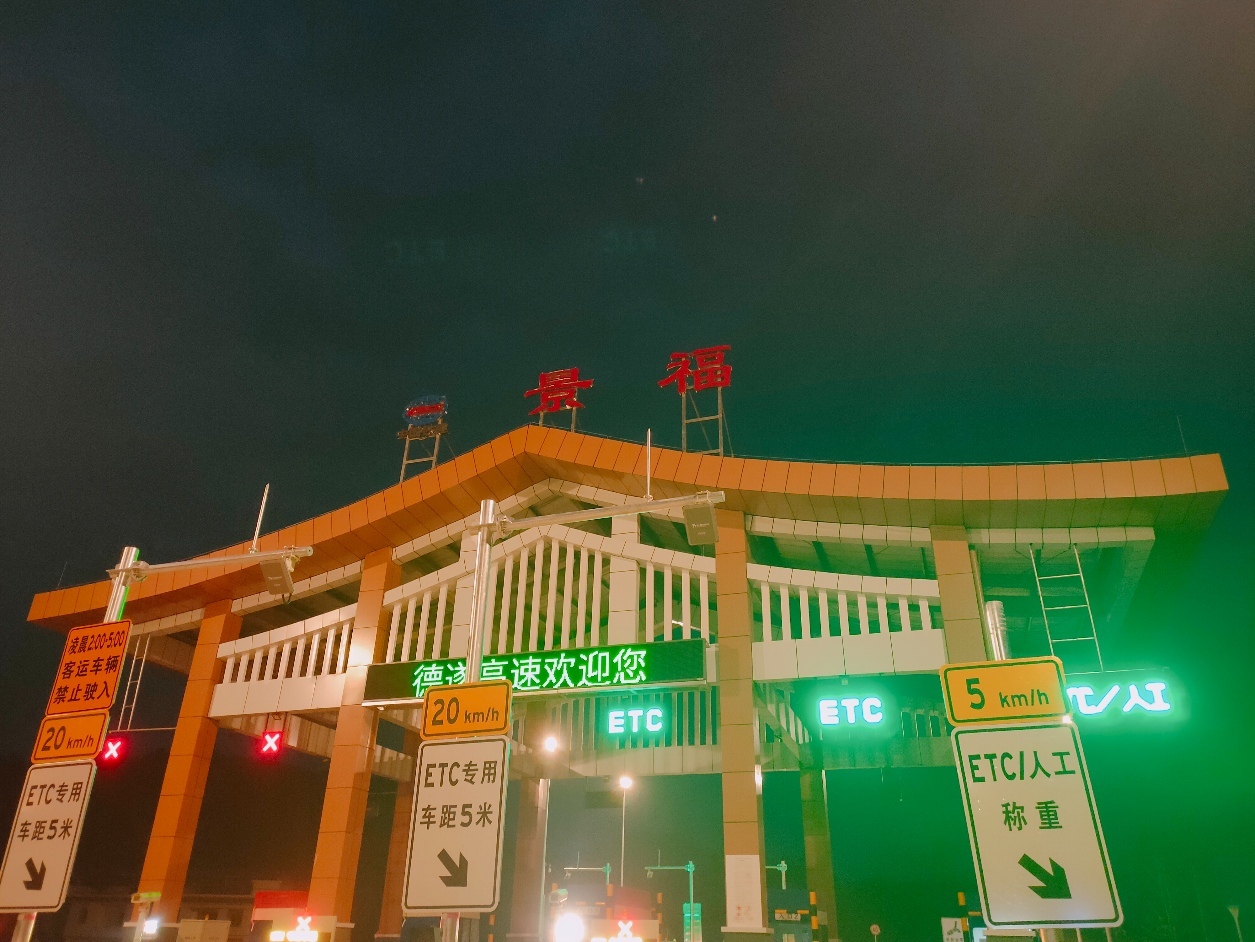

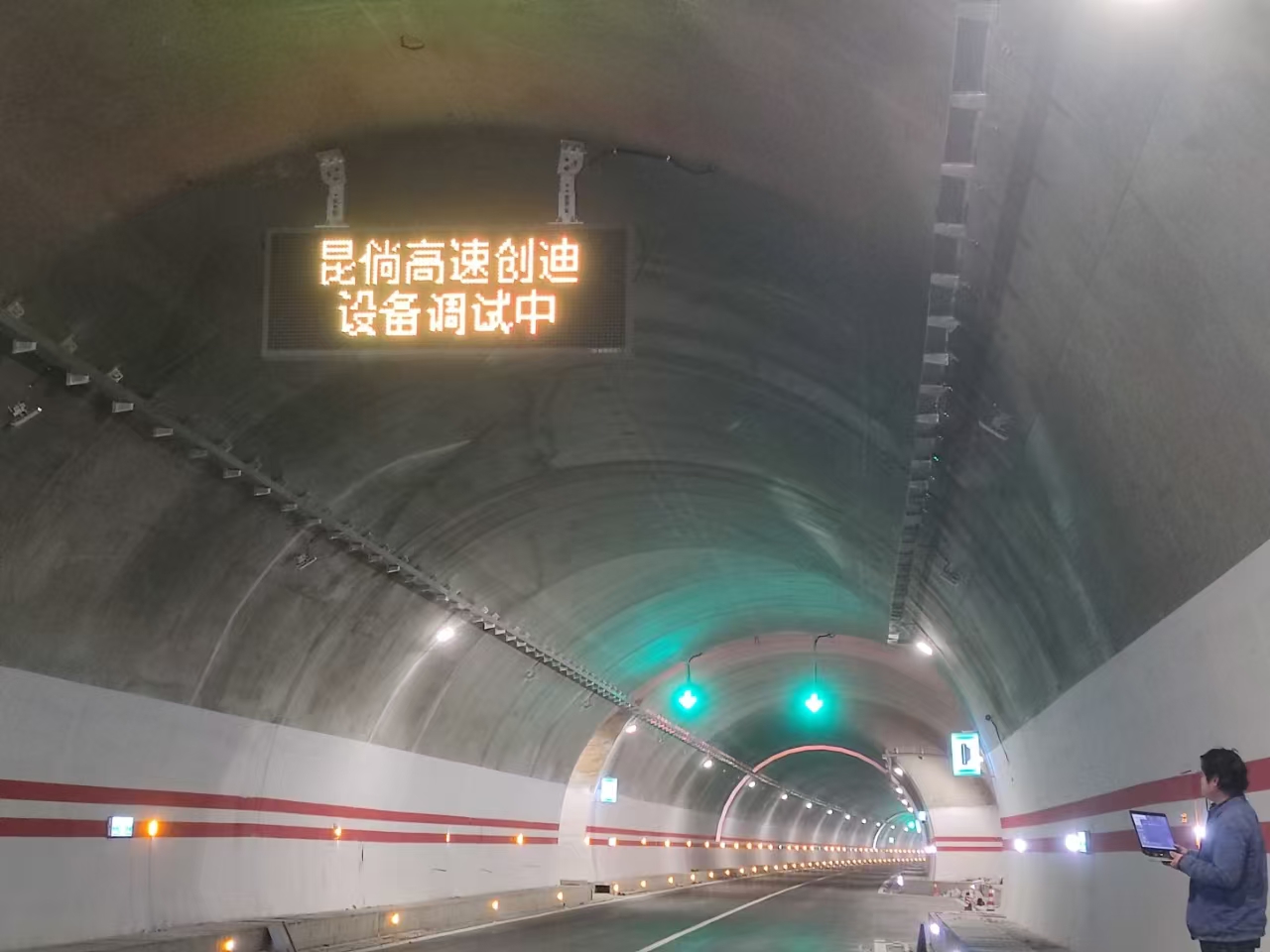

toll station expressway gantry expressway service area expressway roadside
|
Display Size(m)(customized) |
10x1 | 10x1 | 9.6x0.96 | 10.24x1.024 | 9.6x0.96 | 3.2x1.6 | 3.2x1.6 | 3.84X1.92 | 3.072X1.536 | 2.4x1.2 | 2.24x1.12 | 4.8x3.84 |
|
Pixel Pitch(mm)(customized) |
31.25 | 25 | 20 | 16 | 10 | 25 | 20 | 20 | 16 | 25 | 20 | 12 |
|
Resolution (pixels) |
320x32 | 400x40 | 480x48 | 640x64 | 960x96 | 128x64 | 160x80 | 192X60 | 192X96 | 96x48 | 112x56 | 480x384 |
| Pixel Ratio | 1 Full color module 2R1G1B,9 Dual color module 2R1G | 1 Full color module 2R1G1B,9 Dual color module 2R1G | Dual color 2R1G | Dual color 2R1G | Dual color 2R1G | Dual color,3R2G | Dual color,2R1G | Dual color,2R1G | Dual color,2R1G | Dual color,2R1G | Dual color,2R1G | Full color,1R1G1B |
|
Luminance |
more than 10000cd/m2,64 levels brightness automatic or manual adjustment |
|||||||||||
|
View Angle |
more than 30o |
|||||||||||
|
Voltage |
AC 380/220v±20%,50HZ±4% |
|||||||||||
|
Working Environmen |
Temperature -40℃ ~ +70℃,relative humidity less than 98% |
|||||||||||
|
MTBF |
more than 20000h |
|||||||||||
|
MTTR |
less than 0.5h |
|||||||||||
|
Life spain |
more than 100000 h |
|||||||||||
|
Mechanical Protection |
IP 66 |
|||||||||||
|
Enclosure Material |
SGCC/Aluminum Alloy(customized) |
|||||||||||
|
Certification |
EN 12966 |
|||||||||||
|
View distance
|
static≽ 250m ,dynamic≽210m(120KM/h,both day and night) |
|||||||||||

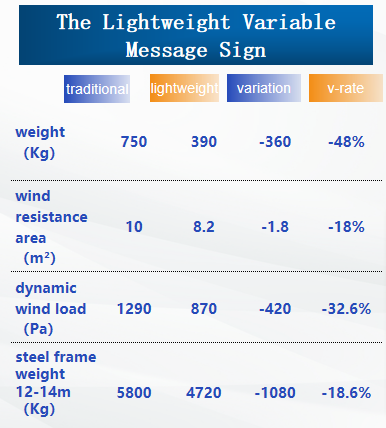

According to your needs, there are also lightweight VMS available for selection.
The lightweight VMS has significantly reduced weight and wind resistance.
