Road stub and Contour Sign (must be plugged in)

Appropriate for regular traffic zones and areas of poor visibility. Ideal for road delineation, bends/curves, crosswalks among others applications. Rising from road surface of 20mm. High brightness during day and night. Possibility of connection of N elements. Low power consumption. Internal prismatic system. Up to 100m visibility distance due to high intensity led’s. Many led’s color options for all kind of applications.

Main technical parameters:

①Size: Length 100mm x Width 100mm x Thickness 20mm;
② Light source: High brightness LED light source is used, with double-sided illumination and 6 LED light sources on each side;
③ Luminous colors: (optional colors) white, yellow, red, green;
④ Working voltage: DC24V;
⑤ Power: ≤ 2W (single-sided ≤ 1W);
⑥ Visual distance:>100m;
⑦ Insulation resistance:>100M Ω;
⑧ Insulation strength:>2500V;
⑨ The grounding resistance of the casing to the internal ground: ＜ 0.1 Ω;
⑩ Protection level: IP67;
⑪ Working temperature: -40 ℃ to+55 ℃; Relative humidity: ≤ 98% RH;
MTBF：≥30000h，MTTR：≤0.5h， Service life: 100000 hours.

Aluminum shell can be customized

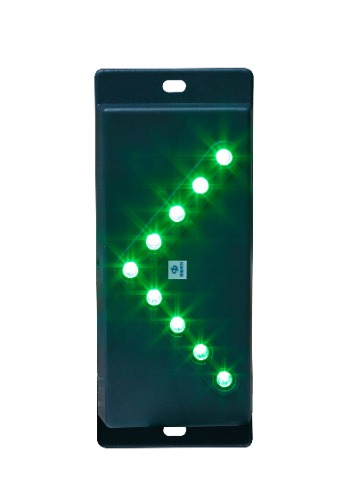

Arrow shape- induction Sign:

Using high brightness light-emitting diodes as built-in light sources, it has the characteristics of high brightness, pure color, low power consumption, and long lifespan.

Main technical parameters:

① Size: length 220mm x width 90mm x height 40mm;
② Rated power: 4W;
③ Rated voltage: DC48V;
④ Luminous color: green;
⑤ Light source lifespan: 50000 hours;
⑥ Protection level: IP67;
⑦ Working environment temperature: -20 ℃ to+55 ℃;
⑧ Working environment humidity: ≤ 98% RH;
⑨ MTBF: ≥ 20000 hours;
⑩ MTTR: ≤ 0.5 hours.

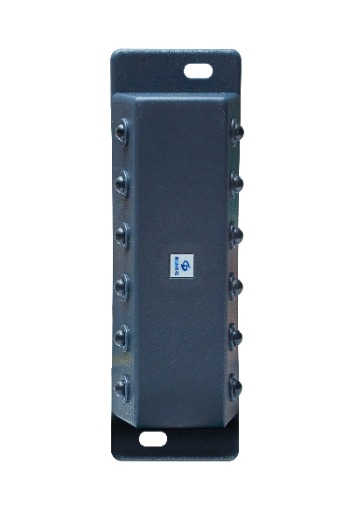

Bilateral induction sign:

Using high brightness light-emitting diodes as built-in light sources, it has the characteristics of high brightness, pure color, low power consumption, and long lifespan.

Main technical parameters:
① Size: length 190mm x width 60mm x height 40mm;
② Rated power: 2.8W;
③ Rated voltage: DC48V;
④ Luminous color: green;
⑤ Light source lifespan: 50000 hours;
⑥ Protection level: IP67;
⑦ Working environment temperature: -20 ℃ to+55 ℃;
⑧ Working environment humidity: ≤ 98% RH;
⑨ MTBF: ≥ 20000 hours;
⑩ MTTR: ≤ 0.5 hours.

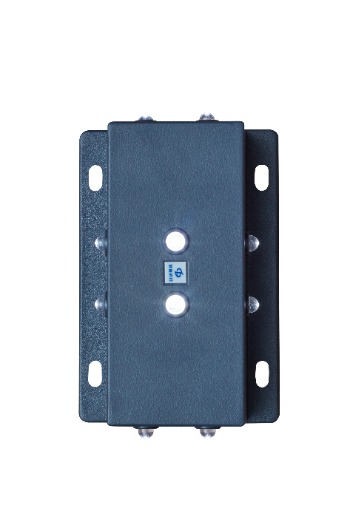

High brightness induction sign:

Main technical parameters:
① Size: length 150mm x width 102mm x height 47mm;
② Rated power: 5W-10W;
③ Rated voltage: DC48V;
④ Luminous color: green;
⑤ Light source lifespan: 50000 hours;
⑥ Protection level: IP67;
⑦ Working environment temperature: -20 ℃ to+55 ℃;
⑧ Working environment humidity: ≤ 98% RH;
⑨ MTBF: ≥ 20000 hours;
⑩ MTTR: ≤ 0.5 hours.

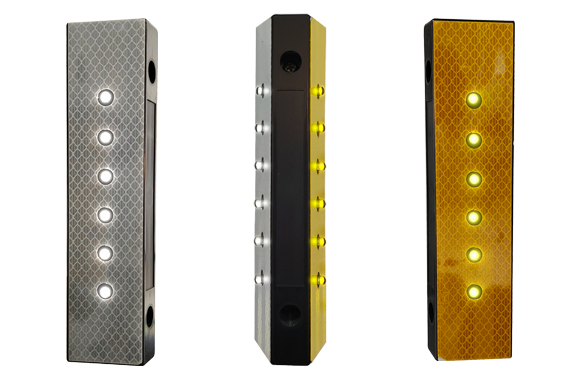

LED contour sign:

① Shell material: ABS plastic;
② Dimensions: length 180mm x width 40mm x height 40mm;
③ Voltage range: DC12V-24V;
④ LED quantity: 6 on one side, color (optional): white, yellow, red, green;
⑤ Power: ≤ 1W;
⑥ Luminous intensity:>6000mcd (single tube);
⑦ Visual distance:>100m;
⑧ Protection level: IP66;
⑨ MTBF: ≥ 30000h, MTTR: ≤ 0.5h, service life: 100000h;
⑩ Working temperature: -40 ℃ to+55 ℃; Relative humidity: ≤ 98% RH;
